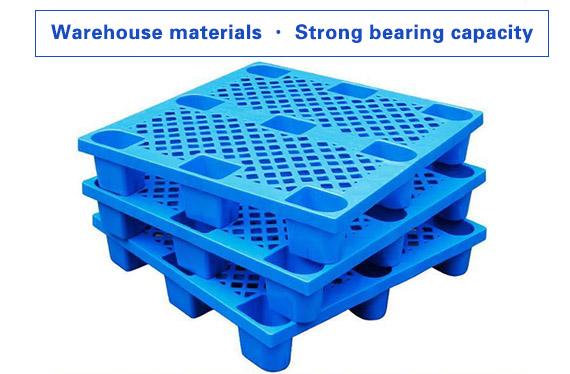

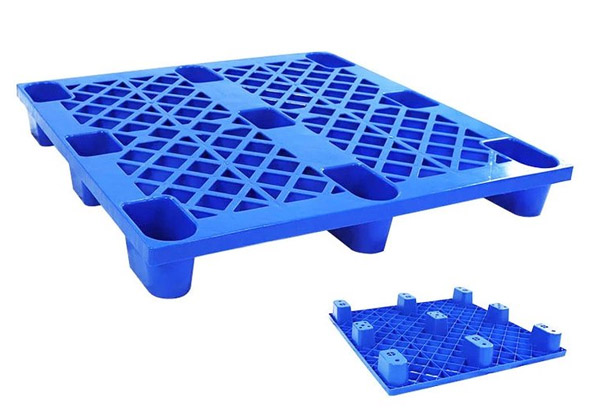

Nine Corners Grid Plastic Pallet
It is composed of a single leg and the surface is in a grid shape, which is used for moisture-proof use of warehouse cargo pads, and also used for the turnover of light cargo.
Material: Impact resistant HDPE
Weight: 12.5KG (±0.5)
Dynamic load: 1.5T
Static load: 5T
Introduction of Nine Corners Grid Plastic Pallet
Nine corners grid plastic pallet means that the bottom structure consists of nine legs, and the surface shape is grid type, so it is called nine corners grid plastic pallets.
Nine corners grid plastic pallet are light-weight plastic pallets, which are only suitable for palletized transportation and single-layer storage of goods as moisture-proof use of warehouse cargo pads.
Product Features
Corrosion resistance: plastic pallets are generally produced with polypropylene or polyethylene raw materials, with excellent corrosion resistance;
Moisture-proof performance: Compared with wooden pallets, plastic pallets have the advantage of moisture-proof performance and are not eroded;
Insect-proof: plastic trays are generally not eroded by insects;
Self-weight and load-carrying weight: The plastic pallet has light weight and strong load-carrying performance.
It is suitable for transportation with plates, unitized transportation, and high operating efficiency;
Four-way/multi-way fork feed is convenient for forklifts, trucks, and hydraulic differential operations;
Technical Parameters
Model | Dimensions (L*W*H/mm) | Weight (kg) | Material |
HL-1008 | 1000*800*140 | Dynamic load: 500; Static load: 2000 | Impact-resistant high-density polyethylene (HDPE) |
HL-1010 | 1000*1000*140 | Dynamic load: 500; Static load: 2000 | |
HL-1108 | 1100*800*140 | Dynamic load: 500; Static load: 2000 | |
HL-1109 | 1100*900*140 | Dynamic load: 500; Static load: 2000 | |
HL-1110 | 1100*1000*140 | Dynamic load: 500; Static load: 2000 | |
HL-1111 | 1100*1100*140 | Dynamic load: 500; Static load: 2000 | |
HL-1208 | 1200*800*140 | Dynamic load: 500; Static load: 2000 | |
HL-1210 | 1200*1000*140 | Dynamic load: 500; Static load: 2000 | |
HL-1211 | 1200*1100*140 | Dynamic load: 500; Static load: 2000 | |
HL-1212 | 1200*1200*140 | Dynamic load: 500; Static load: 2000 | |
HL-1311 | 1300*1100*140 | Dynamic load: 500; Static load: 2000 |
