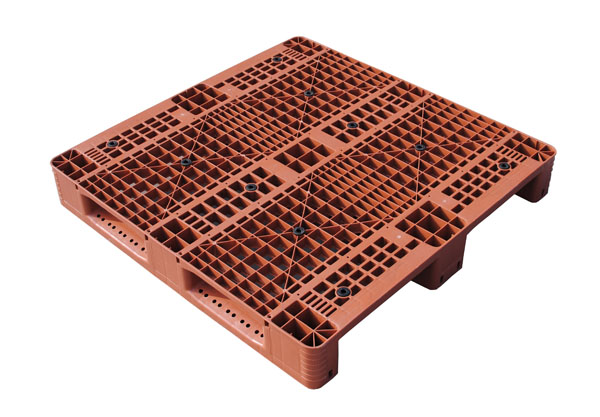

Grid Injection Plastic Pallet

Introduction of Grid Injection Plastic Pallet

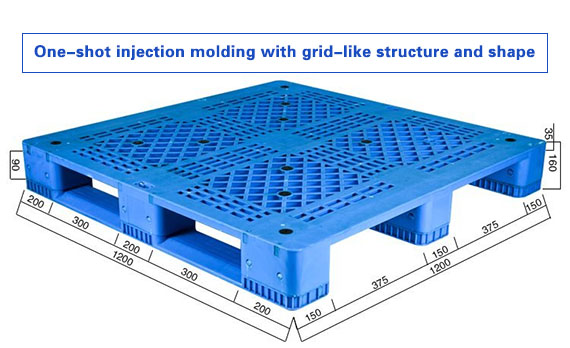

The Grid Injection Plastic Pallet adopts the injection molding process to form at one time, which means that the structure and shape of the plastic pallet are grid-like. Grid plastic trays are widely used in medicine, food, papermaking, chemical, beverage, packaging and other industries, and some of them can be built with steel pipes inside to increase the load.

Grid Injection Plastic Pallet is suitable for various types of forklifts such as hand forklifts, electric forklifts, mechanical forklifts, etc. It has light weight, bright and calm surface, good heat resistance, high mechanical strength, excellent chemical stability and electrical isolation, non-toxic and other characteristics, in medicine, tobacco, feed, clothing, footwear, electronic appliances, glass, ports, docks and many other industries is an important and necessary equipment tool for modern transportation packaging warehouses and product exports.

Product Features

Light weight and strong - using PP or HDPE as raw material, adding colorant and anti-aging agent, and using injection molding process to form in one time.

Physical properties - excellent physical and mechanical properties, weather resistance and chemical resistance, easy to wash and sterilize, and no mildew. ​​

Safety - no nails, no thorns, so it will not damage items and operators, good space transfer safety, no sparks from friction, suitable for the transportation of flammable goods. ​​

Save a lot of resources - all high-quality plastics are used as raw materials, saving a lot of wood resources for the country. ​​

Carrying capacity - double-sided: dynamic load 1.5T, static load 4.0-6.0T, shelf load 1.0T; single-sided pallet:dynamic load 1.2T, static load 3.0-4.0T, shelf load 0.8-1.0T.

Economical - good quality and dimensional stability, long service life, no need for repairs.

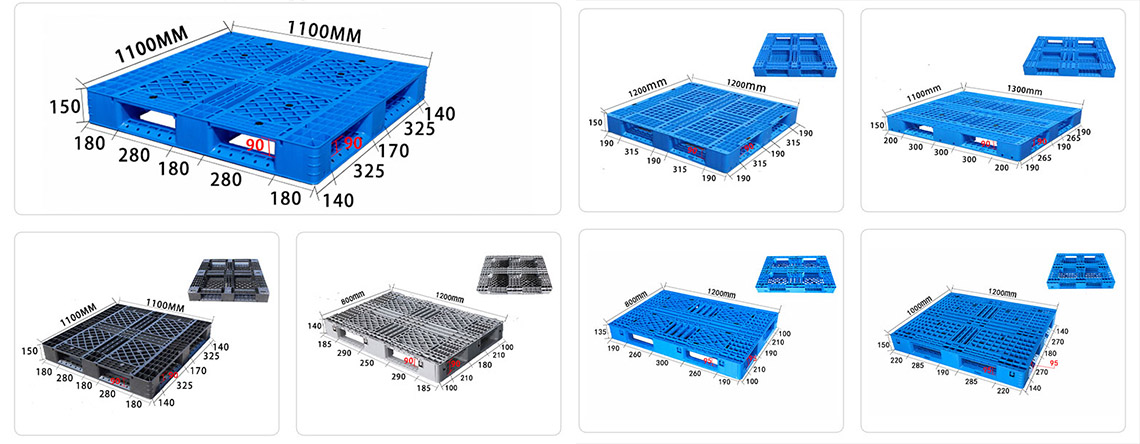

Technical Parameters
